Product Description

Features:

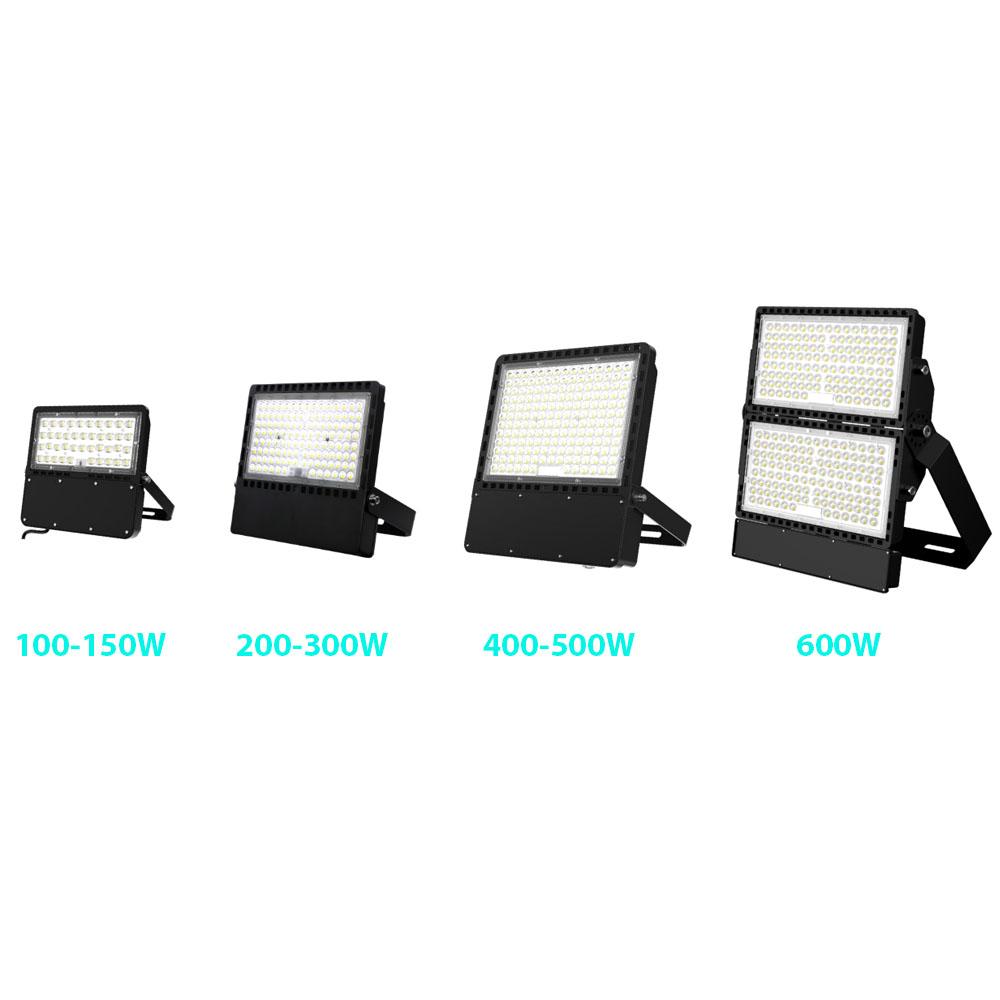

Model	LL-FLX-100W-MX	LL-FLX-150W-MX	LL-FLX-200W-MX	LL-FLX-240W-MX	LL-FLX-300W-MX	LL-FLX-400W-MX	LL-FLX-500W-MX	LL-FLX-600W-MX
Wattage	100W	150W	200W	240W	300W	400W	500W	600W
Input Voltage	100-277V/277-480V/100-347V,50 / 60 Hz
Luminous Flux	14000lm-18000lm	21000lm-27000lm	30000lm-36000lm	33600lm-43200lm	42000lm-54000lm	60000lm-72000lm	70000lm-80000lm	84000lm-108000lm
Color Temperature	3000K/ 4000K/ 5000K/5700K/ 6500K
Beam Angle	Type  II / III / IV / V		Type   III			Type   III		Type   III / 15º /  30º / 45º / 60º /  90º
CRI	Ra70 (Ra80 or Ra90 optional)
PF	≥0.95
Operation Temperature	-40°C to + 50°C (-40°F to 122°F)
Net Weigh(kg/lbs)	2.45 /5.4	2.95 /6.5	4.5 / 9.9		5.0 / 11.0	7.3 / 16.1		12.5 / 27.6
GrossWeight (kg/lbs)	2.65 /5.8	3.15 /6.9	5.5 / 12.1		6.0 / 13.2	8.3 / 18.3		14.5 / 32.0
Size Of Box(mm/in)	345*320*70 / 13.6*12.6*2.8		460*440*115  / 18.1*17.3*4.5			525*460*95  / 20.7*18.1*3.7		600*510*100  / 20.7*18.1*3.7
QTY/CTN	6		1			1		1
GW/CTN	17.9 / 39.5	20.9 / 46.1	5.5 / 12.1		6.0 / 13.2	8.3 / 18.3		14.5 / 32.0
Size Of CTN(mm/in)	355*330*475 / 14.0*13.0*18.7		460*440*115  / 18.1*17.3*4.5			525*460*95  / 20.7*18.1*3.7		600*510*100  / 20.7*18.1*3.7



uLight Efficiency: 140lm/W-180lm/W;

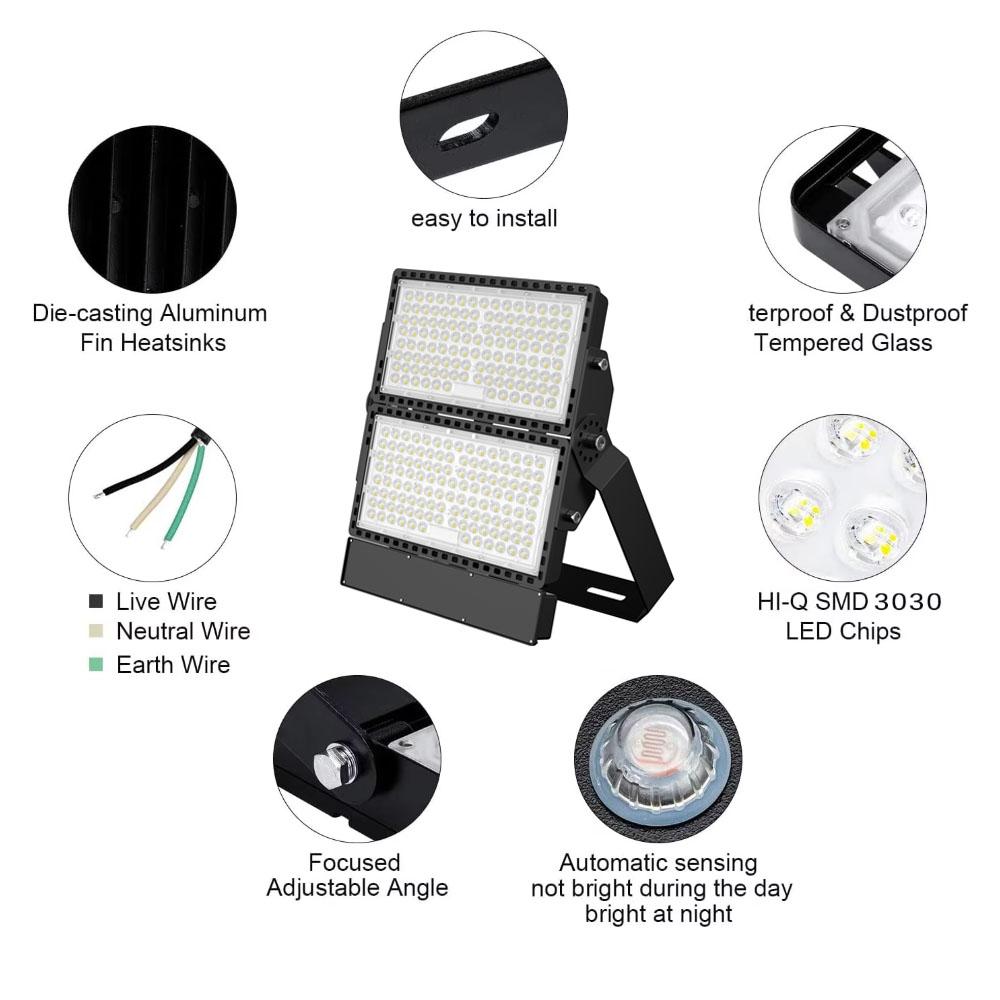

uHeavy duty die cast aluminum housing with ample heat sinking;

uHigh bright SMD 2835/3030,LM80 listed;

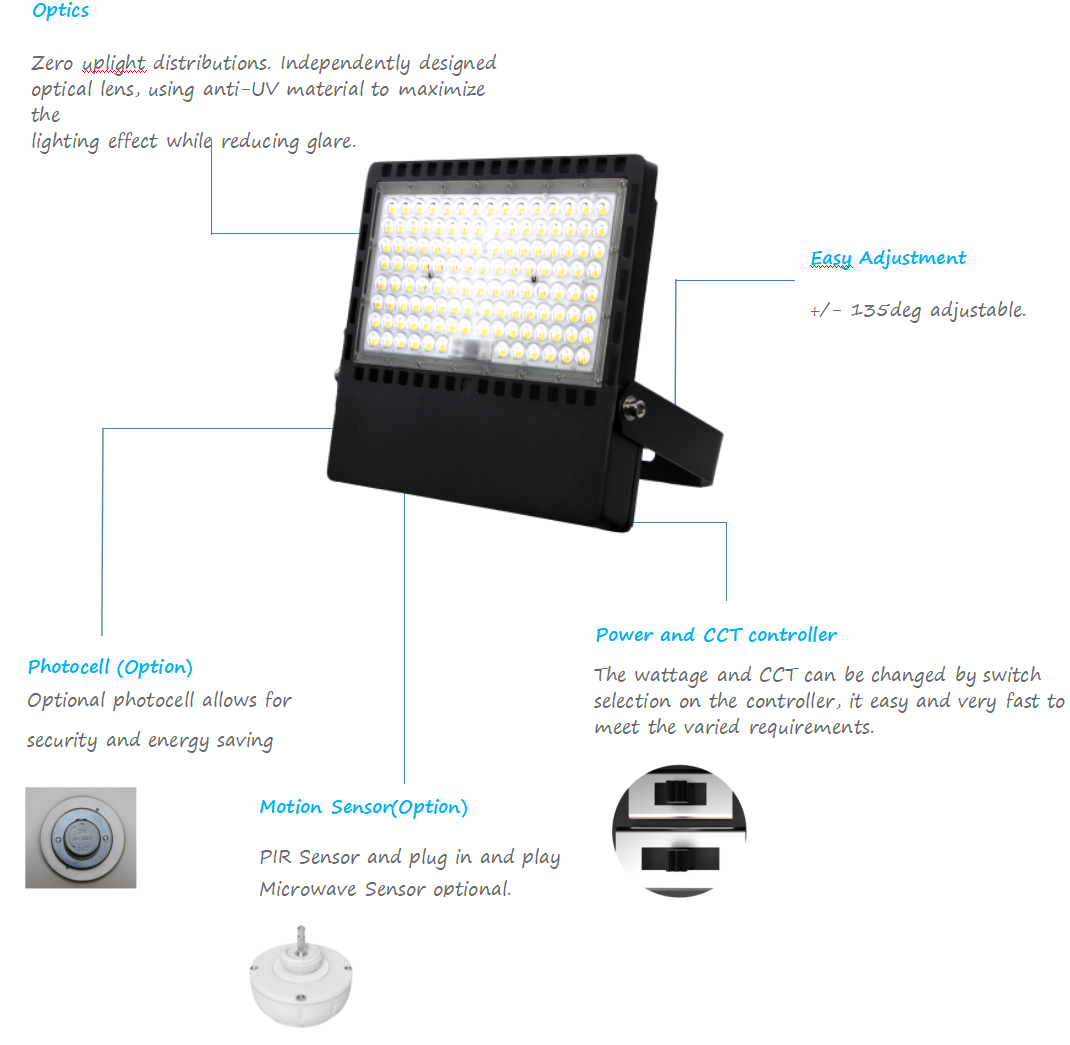

uOptics of  Type  II / III / IV / V / 15º /  30º / 45º / 60º /  90º available on request;

uDie-casting aluminum with polyester powder coat finish,Excellent thermal management design;

uEnergy savings, no UV and IR radiations, emits low heat;

uIP66/IK08/4KV rating for outdoor usage;

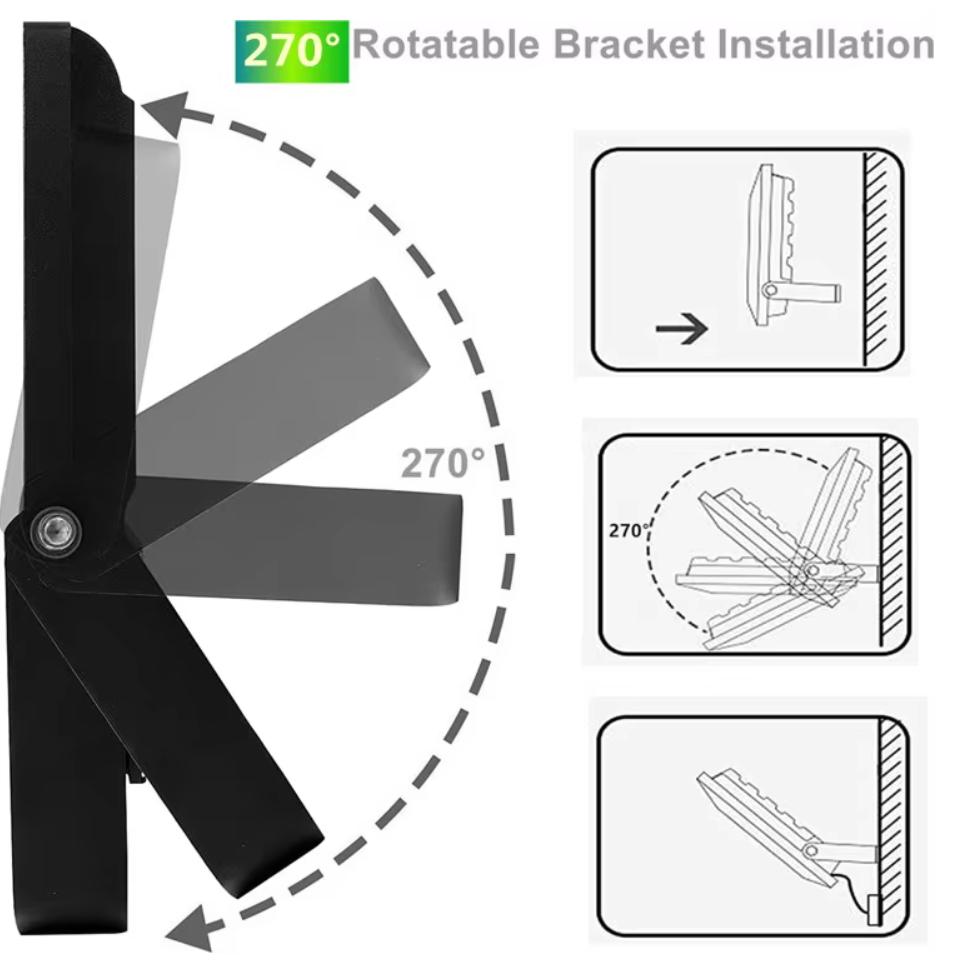

u270degree rotatable bracket;

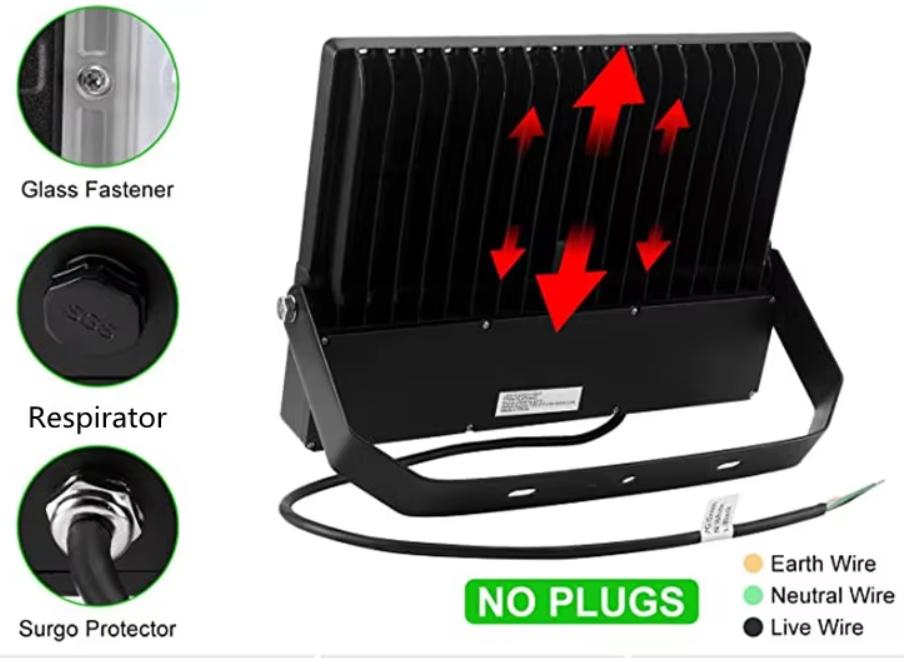

uWith breathing valve,can clean up the moisture inside of lamp and keep balance of pressure

difference between lamp inside and outside;

u0-10Vor 1-10V dimming for low power consumption;

uETL/cETL/SAA/DLC/C-TICK/FCC/CE/RoHS approval;

uStandard cable: 0.5M,1M/1.5M/2M can be customized;

u7 years warranty.

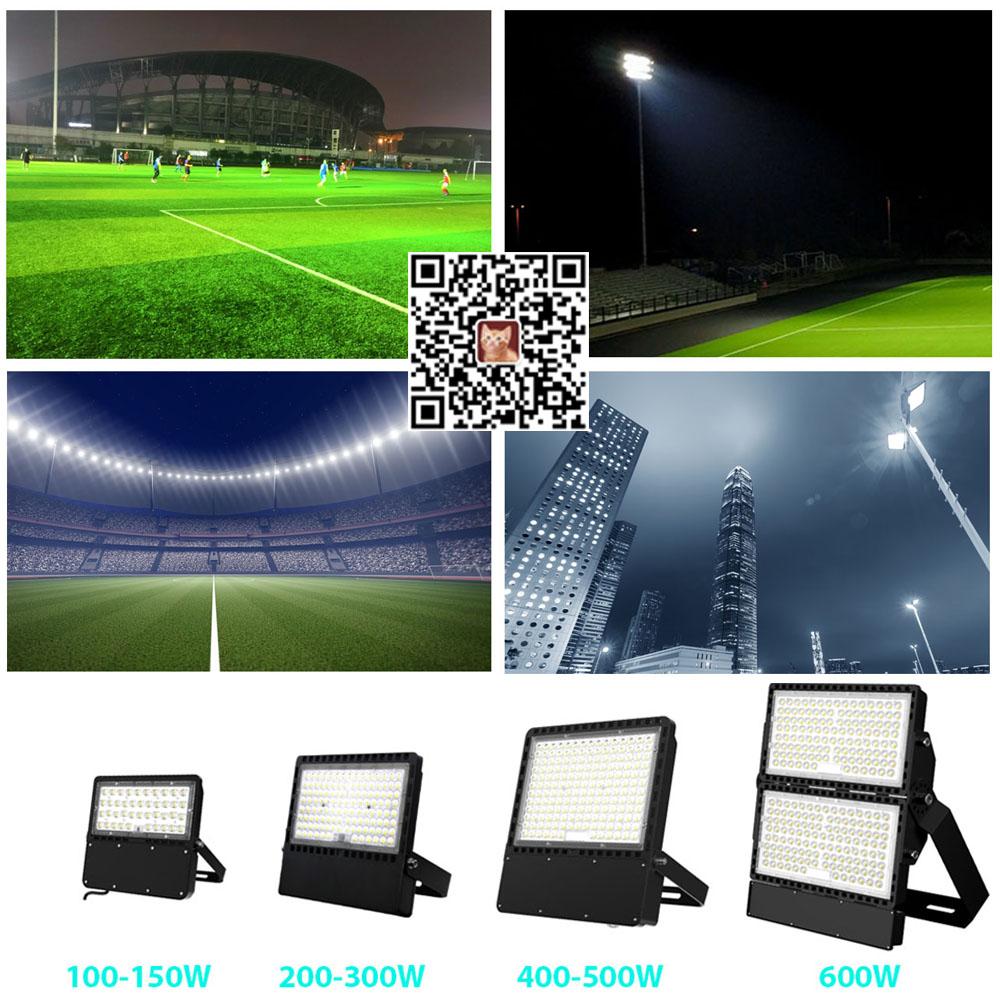

Application:

1. Tunnel, Subway, Underground Lighting;

2. Gymnasium, Sports Stadium Lighting;

3.Building, Billboard Lighting;

4.Gas Station, Garage Lighting;

5. Park, Garden Lighting;

6. Workshop, Factory Lighting;

7.Warehouse, Storage Lighting;

8. Yard, Square Lighting;

9.Road,Highway Lighting;

10.Station,Dock Lighting etc

11. Directly replace the traditional HID light to save energy



Trade terms:

•  Payment terms: T/T,L/C at sight
• Sample Delivery Term: Samples can be delivered within oneweek via DHL/Fedex/UPS/TNT/EMS
• Shipping port: Shenzhen, China

Price Terms︰ EXW Shenzhen factory

Payment Terms︰ T/T or LC at sight

Lead Time︰ 7-10days after receiving payment

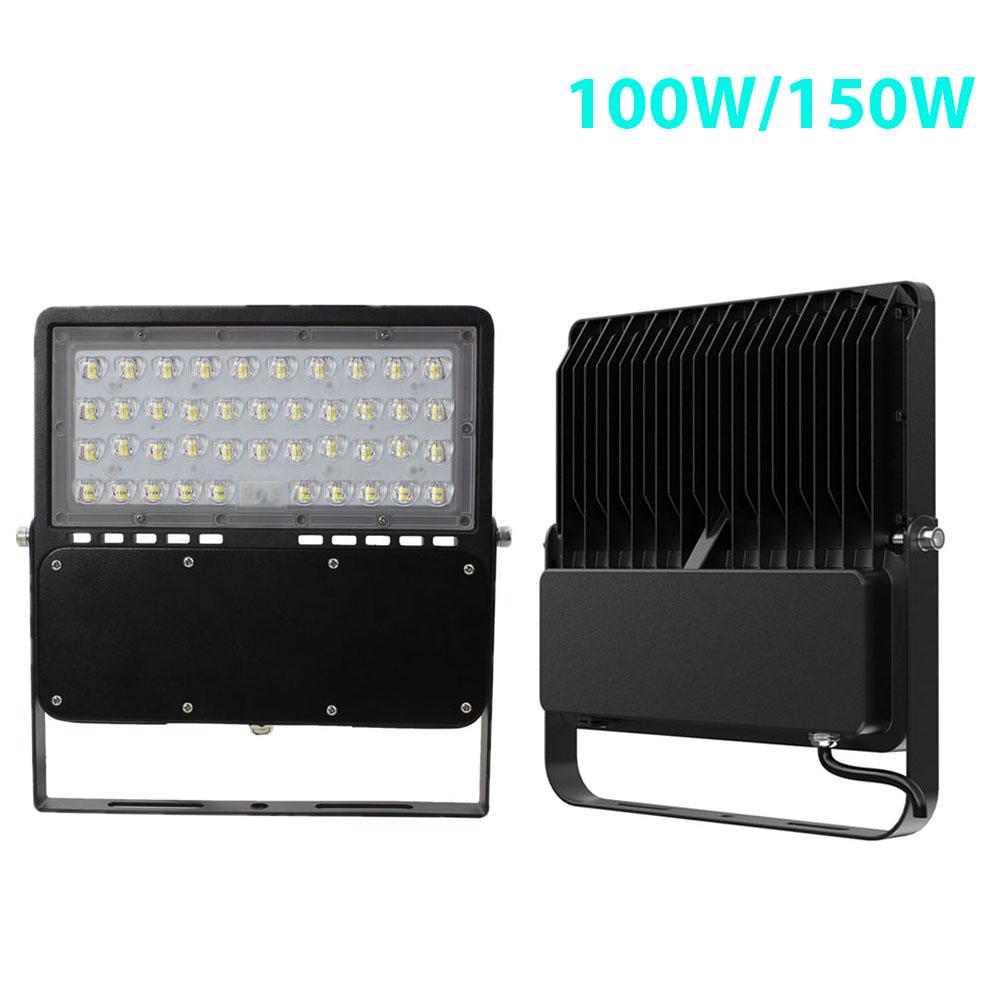

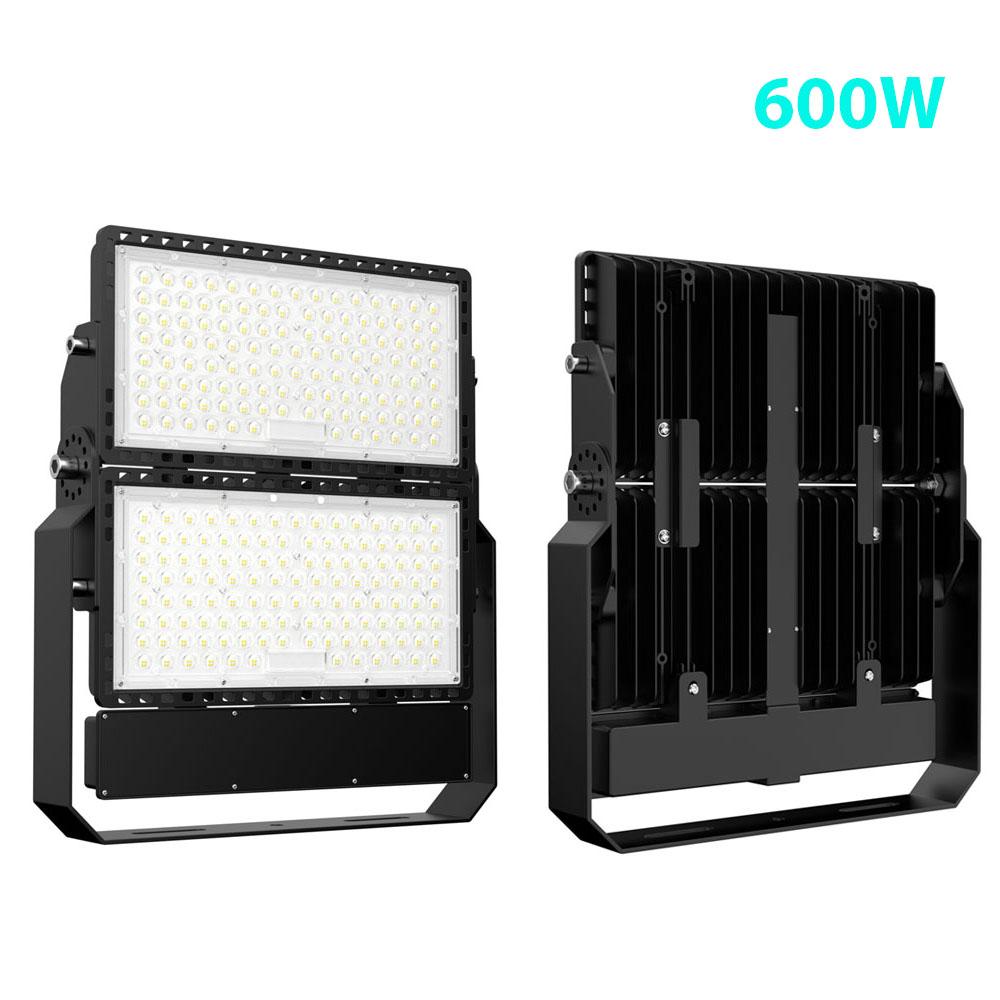

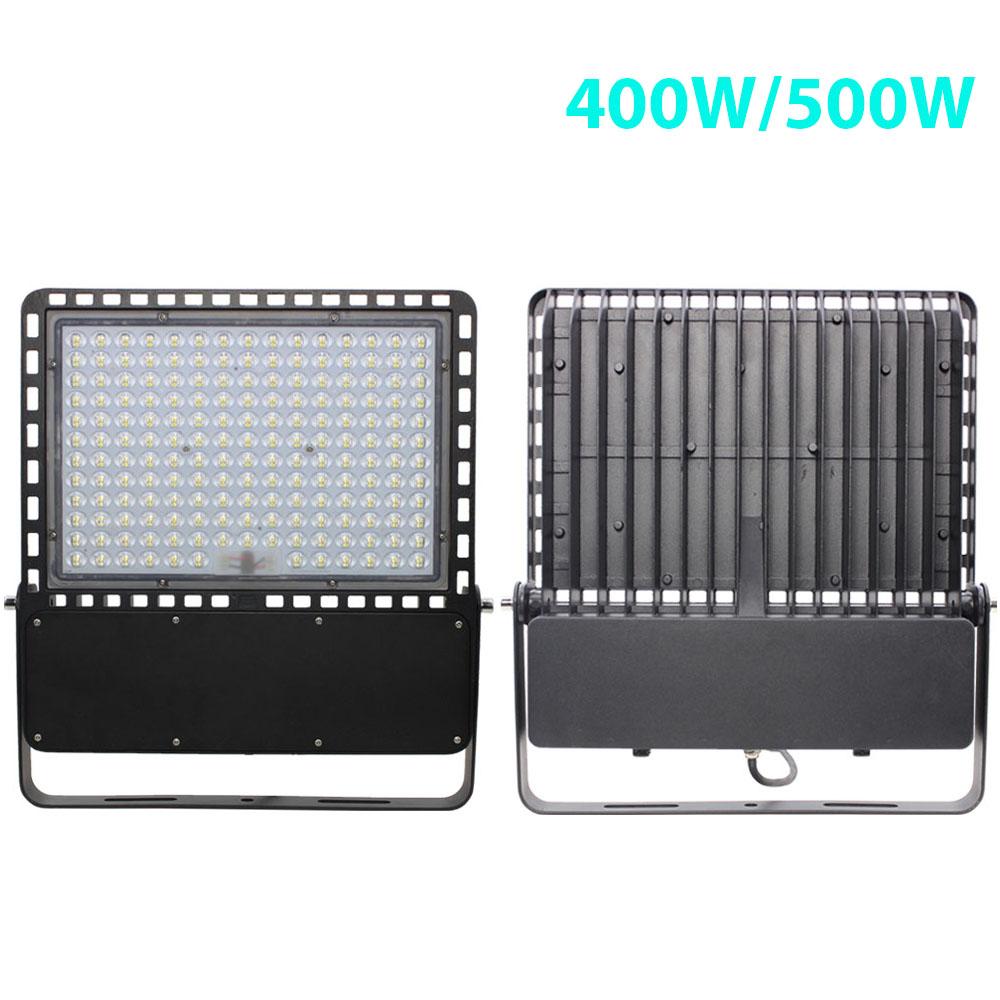

Product Image
